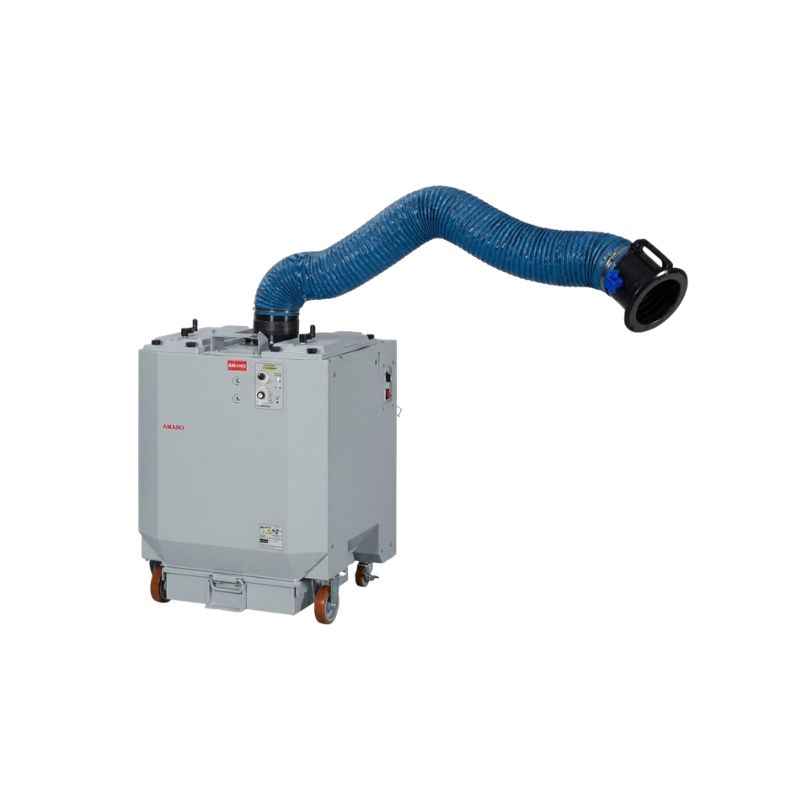

MÁY HÚT KHÓI HÀN DI ĐỘNG AMANO FD-10

• Function to prevent sparks-sputter from going into filter box.
• The sparks contained in the aspirated air are extinguished when passing through “fire fighting swirling flow mechanism” and the fumes are collected by the dust collecting filter of the latter stage.
• Duct can be freely moved in a radius of 1.7 m.
• You can reliably collect dust at the optimum position.
• You can move freely to work place with small body and caster.

Material: PET blend cellulose
Surface treatment: Nanofiber film laminate
Corresponding models: FD-10
Application: Dried fine particles and fumes

Features

• Noncombustibility
• For dried fine particles (particle diameter 10μm or less) Flame retardance
• Collecting efficiency: Very Good, Particle diameter 10μm or less
• Heat resistant temperature (F): normal temperature 40˚C (104˚)
• Dust removal: Vibration

• Duct wish hood can be freely moved in a radius of 1.7 m.
• You can move freely to work place with small body and caster.
• You can reliably collect dust at the optimum position.

• The sparks contained in the aspirated air are extinguished when passing through “fire fighting swirling flow mechanism” and the fumes are collected by the dust collecting filter of the latter stage

• The filter is a flame retardant material composed of synthetic cellulose and polypropylene.

• The nanofiber-coated filter has a compact size but comes with a large filtration area, fine welding fumes can be reliably collected

Unit:mm
