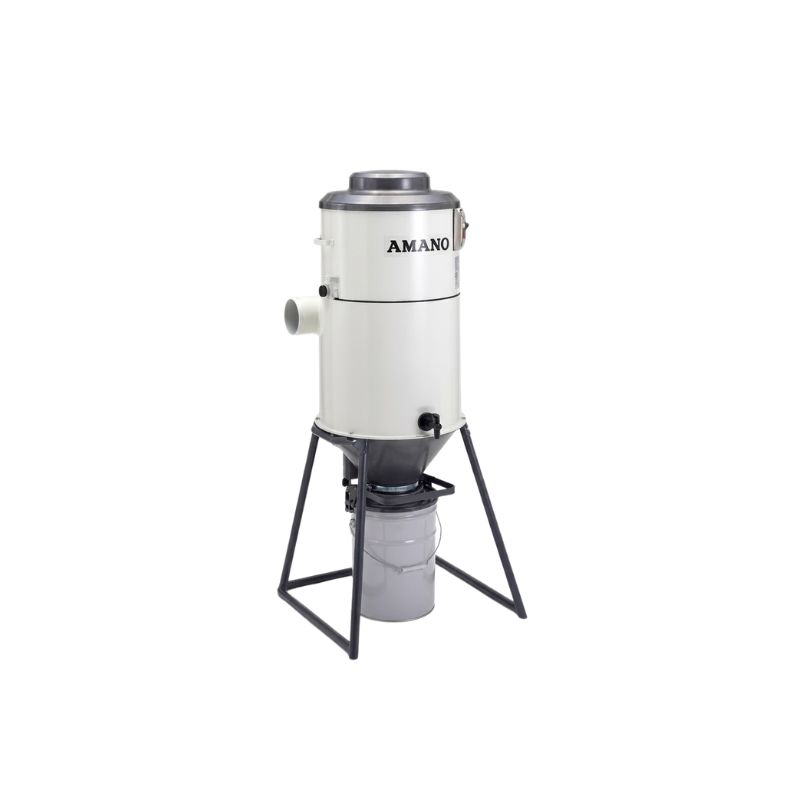

Máy Hút Bụi Lốc Xoáy AMANO IS-15

Material: Polyester
Surface treatment: –
Corresponding models:IS-15
Application: General dried particles (particle diameter about 10μm)

Option: Finfill, Antistatic, and Finfill + antistatic

Utilizes a newly developed filter having an inner/outer dual-layer filtration area. The filter with a wider surface area has a longer life and operates with greater stability.

50% or more of dust is separated by cyclone swirling flow before passing through the filter.

Air containing dust particles is sucked inwards, forming a high-speed flow and swirling downwards along the inner surface of the unit. The dust concentration becomes higher as the external airflow becomes faster, and only the airflow with a lower concentration of dust along the inner surface of the unit is filtered. The dust on the outer side of the airflow drops directly into the bucket without making contact with the filter. This primary dust isolation separates out about 50 percent of the dust and reduces the load.

It’s Makes Duct Connection Orientation to Freely

One of six different positions can be selected for the suction port and bucket by changing the pipe connection between the main unitand lower part of the unit.(Note that the position should not interfere when changing the filter)

It is easy to dispose of dust without getting dirty.

High airtightness, easy to setup dust bucket and easy to dispose dust.

Cyclone swirling flow
50% or more of dust is separated by cyclone swirling flow before passing through the filter.

Air containing dust particles is sucked inwards, forming a high-speed flow and swirling downwards along the inner surface of the unit. The dust concentration becomes higher as the external airflow becomes faster, and only the airflow with a lower concentration of dust along the inner surface of the unit is filtered. The dust on the outer side of the airflow drops directly into the bucket without making contact with the filter. This primary dust isolation separates out about 50 percent of the dust and reduces the load.

It’s Easy to Replace Filter

Just open the top of the unit to replace the filter. A locking device maintains operator safety during filter replacement, and no tools are needed so replacement is extremely simple
